Product Description

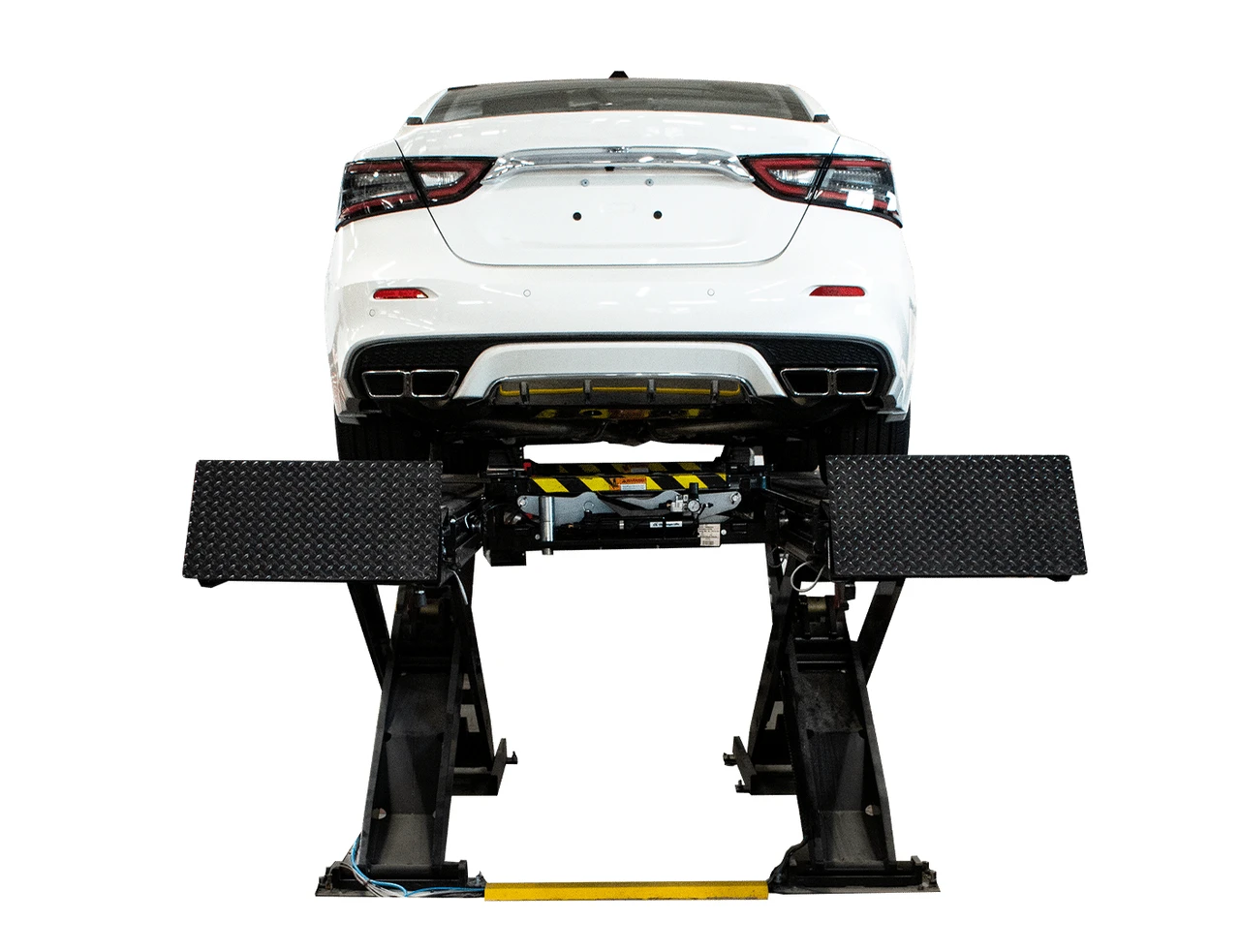

Challenger Lifts SX14 Series Heavy Duty Scissor Alignment Lift
The Challenger SX14 Series scissor lift is designed for alignment and general service applications. Adjustable turn plates allow the lift to accommodate a range of vehicle wheelbases, while integrated LED lighting improves visibility during service. The rear slip plates use a single locking point to simplify alignment setup and operation.
For even greater versatility, the SX14 series features optional extended ramps that allow for the seamless loading of low-clearance vehicles. This feature expands the range of vehicles that can be serviced, making it an excellent investment for any automotive service center.
The SX14 series includes flush—and surface-mounted models, making it easy to integrate into any workshop space. Additionally, the kit includes two rolling jacks, adjustable turn plates, and an airline kit for dual jack operation, ensuring that automotive service professionals have everything they need to perform maintenance tasks easily.
**Free shipping to Continental United States.** Delivery will be made by motor freight. Customer is responsible for unloading the lift from delivery truck. Does not include installation, though installation is available locally.
Manufacturer's warranty: 2 year functional parts, 1 year structural parts, 1 year labor.
Features
- Package includes two (2) rolling jacks, turn plates, and an airline kit for dual jack operation
- Extra wide runway width accommodates single and dual rear wheel vehicles
- Photo cell ensures runway synchronization
- Automatic light feature illuminates the underside of the vehicle and turns off when lift is lowered below 18”
- Maintenance-reduced rear slip plates use oversized, encapsulated bearings to protect against environment debris
- Twin hydraulic cylinders provide smooth operation
- Approach ramps are equipped with end rollers to minimize noise and reduce floor damage
- Single point air actuated lock release allows ergonomic working height for technicians to increase productivity and minimize fatigue
- Powder coat finish provides long-lasting durability
- Can be mounted above ground or flush
- ALI certified
Specifications
| Model Number | SX14 | SX14-ER | SX14-FM |
|---|---|---|---|
| Description | Standard | Extended Ramps | Flush Mount |
| Lifting Capacity | 14,000 lbs. | 14,000 lbs. | 14,000 lbs. |
| Rise Height | 77” | 77” | 66.5” |
| Overall Length | 265” | 283” | 265” |
| Overall Width | 91.25” | 91.25” | 91.25” |
| Width of Runways | 25.5” | 25.5” | 25.5” |
| Between Runways | 40” | 40” | 40” |
| Lowered Height | 10.5” | 10.5” | - |
| Maximum Wheelbase | 183” | 183” | 183” |
| Wheel Alignment (Max.) | 176” | 176” | 176” |
| Wheel Alignment (Min.) | 70.75” | 70.75” | 70.75” |
| Motor | 3 HP | 3 HP | 3 HP |
| Voltage (Single Phase Std.) | 208-240v (23 FLA) | 208-240v (23 FLA) | 208-240v (23 FLA) |
| Speed of Rise | 75 s | 75 s | 75 s |
| Air Required (filtered/lubricated) | 90 - 120 psi (20CFM) | 90 - 120 psi (20CFM) | 90 - 120 psi (20CFM) |
| Min. Recommended Bay Size | 14’ x 28’ | 14’ x 28’ | 14’ x 28’ |
| ALI/ETL Certified | Yes | Yes | Yes |
| Color Available | Black | Black | Black |
Requirements

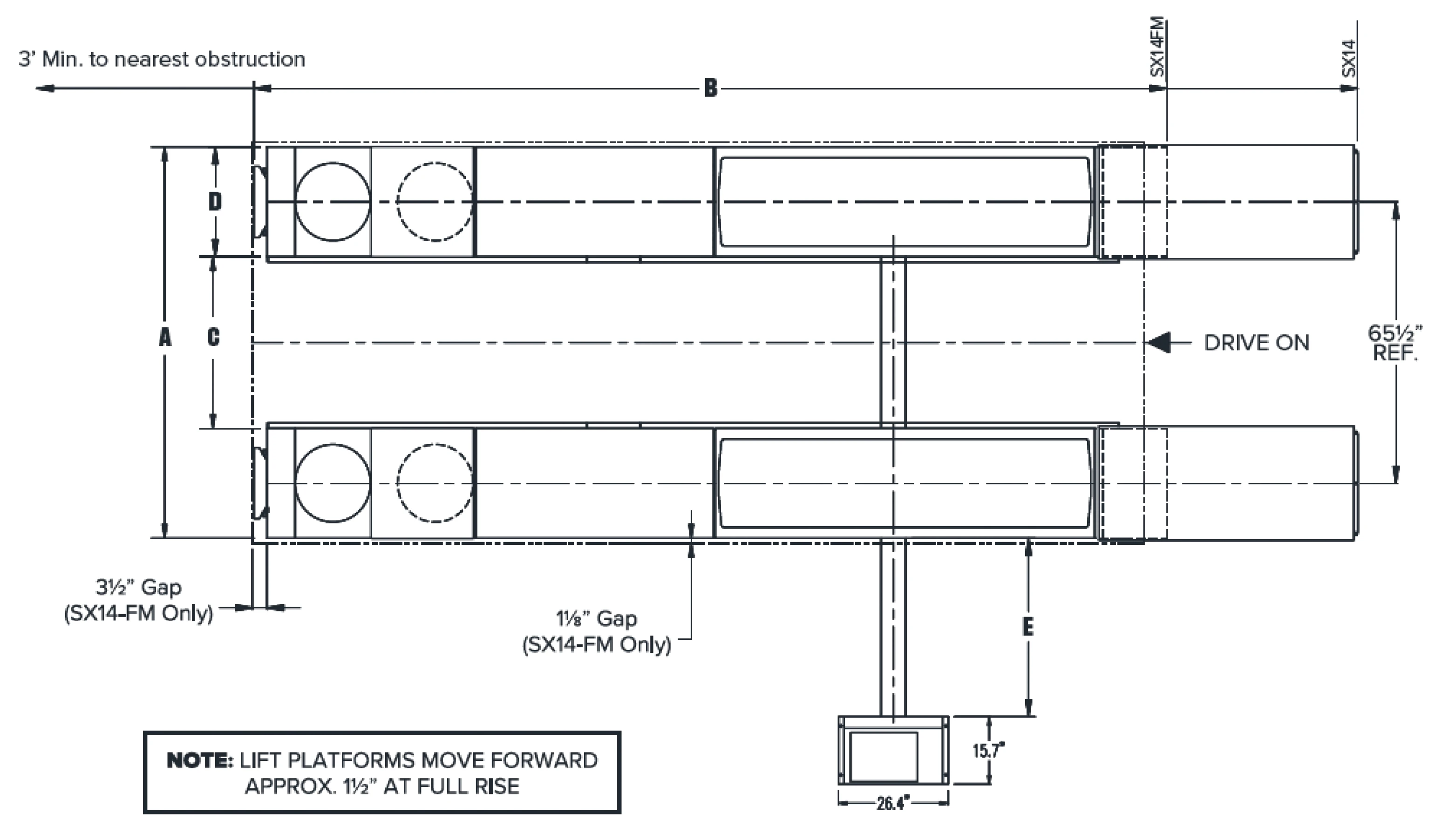

Service Bay Layout
--------------------------------------------------------------------------------------------------------------------------------
