Product Description

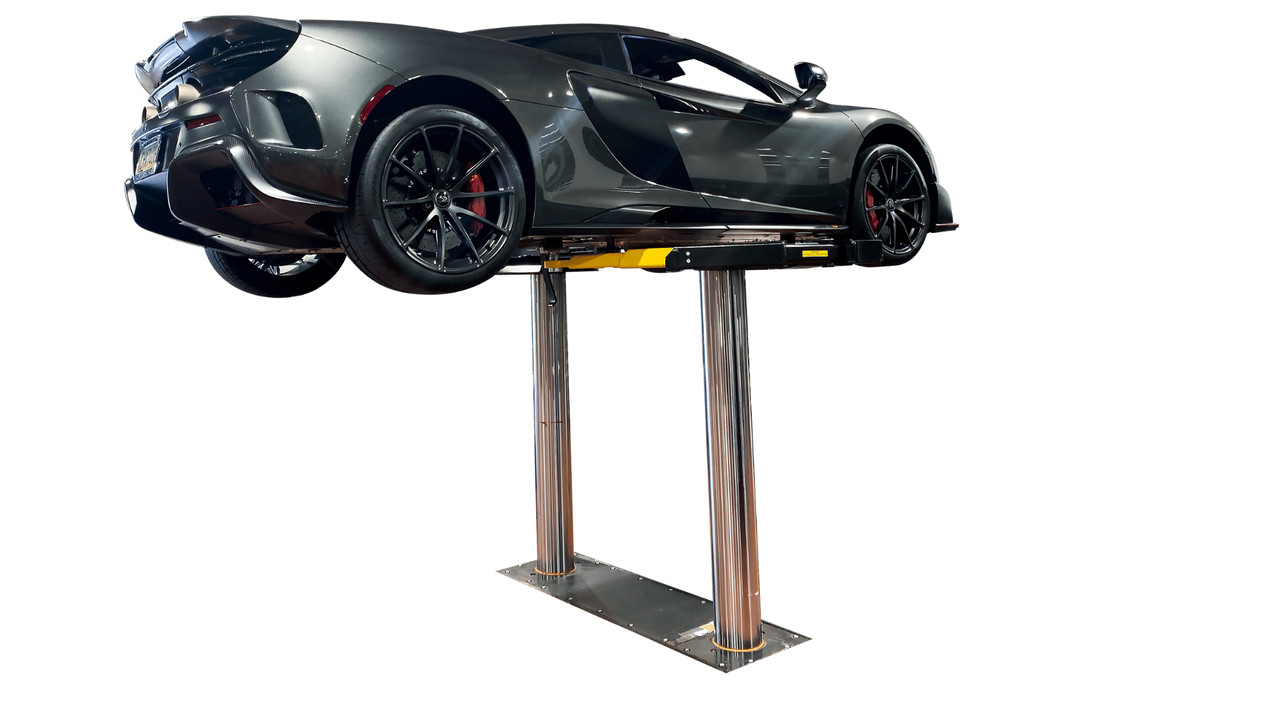

Challenger Lifts EV1020 10,000lb Standard In-Ground Lift
Challenger’s EV1020 in-ground electric-hydraulic cassette lift is built to handle the needs of professional service shops, offering a 10,000 lb. lifting capacity in a compact design that helps maximize available bay space. The EV1020 features either three-stage front and rear arms or an optional fixed drive-on pad for added flexibility. Quick Cycle™ models are also available, delivering rapid lifting in as little as 27 seconds and lowering in just 17 seconds. Designed for versatility and ease of use, this lift helps expand your service capabilities! ALI/ETL certified.
**Free shipping to Continental United States.** Delivery will be made by motor freight. Customer is responsible for unloading the lift from delivery truck. Does not include installation, though installation is available locally.
Free shipping if drop shipped from the factory (subject to factory lead time). In-stock lifts at Melrose may be picked up at our warehouse, with local installation/delivery available.
Manufacturer's warranty, 2 year parts, 1 year labor.
Features
- 10,000 lb. lift capacity
- 3-stage front and 3-stage rear arms provide access to the lift points of a wide range of cars and trucks, maximizing revenue potential
- Also available with a drive-on style pad (XP9) to aid in quick vehicle spotting for express bays
- 8 1/2” diameter chrome pistons provide greater stability under load
- Chrome non-breathing ram style cylinder provides for longer lift life
- Enhanced raised wiper at top and bottom of bearing provides better grease retention and minimizes bearing contamination
- Long bearing contact provides increased stability
- Mechanical lock engages every 3″ allowing ergonomic working height for technicians to increase productivity and minimize fatigue
- Stainless steel air lock release cylinder promotes longer working life with its corrosion resistant design
- Fully-contained and sealed recycled polymer cassette tub eliminates risk of hydraulic fluid seeping into the ground
- Premium double telescoping screw pads adjust to multiple heights minimizing the need for adapters
- 87″ drive-thru accommodates wider vehicles, minimizes tire damage and provides for easy drive-on
- Quick Cycle™ models reduce vehicle travel time by 30 percent
- Wide range of upgrades to further customize your fleet
- Premium powder coat finish on bolsters and arms provides long-lasting durability
Specifications
| EV1020 | EV1020-QC | EV1020XP9 | EV1020XP9-QC | |
| Lifting Capacity | 10,000 lbs. | 10,000 lbs. | 9,000 lbs. | 9,000 lbs. |
| Arms | 3-stage front / 3-stage rear | 3-stage front / 3-stage rear | n/a | n/a |
| Stroke | 68” | 68” | 68” | 68” |
| Rise Height | 74” | 74” | 70” | 70” |
| Width Overall | 97" | 97" | 79.75” | 79.75” |
| Drive-Thru Clearance | 87” | 87” | - | - |
| Reach (Arm Minimum) | 19.625” | 19.625” | - | - |
| Reach (Arm Maximum) | 42.125” | 42.125” | - | - |
| Screw Pad Height | 3.875” - 6” | 3.875” - 6” | Minimum Pad Height: 2.25" | Minimum Pad Height: 2.25" |
| Capacity | 2,500 lbs. per arm | 2,500 lbs. per arm | 4,500 lb. per pad | 4,500 lb. per pad |
| Guide Plunger Diam. | 8.5” | 8.5” | 8.5” | 8.5" |
| Motor / Voltage | 2HP, 208v-230v, 60Hz, 1Ph | 2HP, 208v-230v, 60Hz, 1Ph | 2HP, 208v-230v, 60Hz, 1Ph | 2HP, 208v-230v, 60Hz, 1Ph |
| Speed of Rise | 38s | 27s | 38s | 27s |
| Air Required | 90 - 120 psi | 90 - 120 psi | 90 - 120 psi | 90 - 120 psi |
| ALI/ETL Certified | Yes | Yes | Yes | Yes |
| Super Structure Colors | Red, Blue, Black | Red, Blue, Black | Black | Black |
