Product Description

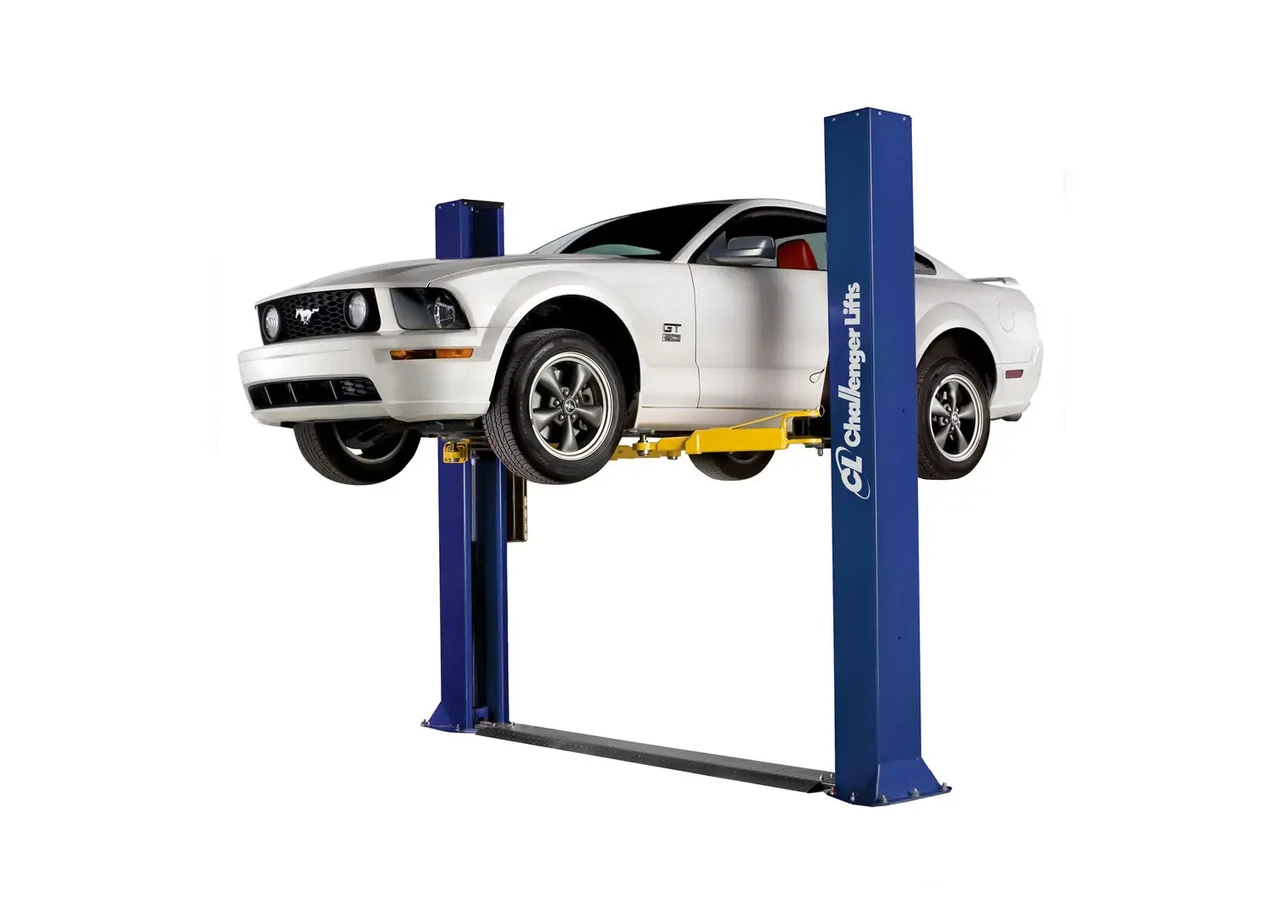

Challenger Lifts CLFP9 9,000lb. Open Top / Floor Plate 2-Post Lift
With a 9,000 lb. capacity and 10’ 7/8” overall column height, Challenger Lift’s CLFP9 2-post is ideal for low ceiling applications. 3-stage front and 3-stage rear arms provide maximum sweep, arm retraction and reach. A low-profile drive-over floor plate allows for easy vehicle positioning, which makes it great for home enthusiast garages or professional service shops. The CLFP9 also features double-telescoping screw footpads, a durable powder coat finish and plated arm pins.
**Free shipping to Continental United States.** Delivery will be made by motor freight. Customer is responsible for unloading the lift from delivery truck. Does not include installation, though installation is available locally.
Free shipping if drop shipped from the factory (subject to factory lead time). In-stock lifts at Melrose may be picked up at our warehouse, with local installation/delivery available.
Call for special pricing on in stock lifts!!
Manufacturer's warranty, 1 year functional parts, 1 year structural parts, and 1 year labor.
Features
- 9,000 lb. lift capacity
- 10’ 7/8” overall column height is ideal for servicing vehicles in a low ceiling height
- Low profile drive-over floor plate for easy vehicle positioning
- 3-stage front and 3-stage rear arms accommodate a wide range of common cars, trucks, vans as well as SUVs within the same service bay
- Electric/hydraulic heavy-duty chain lifting operation with cable equalization to reduce ceiling height requirement
- Dual-point mechanical pull-lock cable release system
- Fully gusseted base plate design increases column rigidity
- Premium double telescoping screw pads adjust to multiple heights minimizing the need for adapters
- Powder coat finish provides long-lasting durability
- Plated arm restraints and arm pins inhibit rust and provide long-lasting durability
- Standard dual integrated rubber door guards help protect vehicle panels from inadvertent damage
Specifications
| Model Number | CLFP9 |
|---|---|
| Lifting Capacity | 9,000 lbs. |
| Lifting Configuration | Symmetric |
| Arms | 3-stage front / 3-stage rear |
| Rise Height | 78.125” |
| Overall Height | 120.875” |
| Overall Height (Cylinder Extended) | 120.875” |
| Overall Width | 137.5” |
| Drive-Thru Clearance | 98.187” |
| Front Arm Reach | 24.5” / 44.5” |
| Rear Arm Reach | 24.5” / 44.5” |
| Screw Pad Height | 4” / 5.875” |
| Inside Columns | 109” |
| Motor / Voltage | 2HP, 208v-230v, 60Hz, 1Ph |
| Speed of Rise | 50 s |
| Ceiling Height Required | 10’ 2” |
| ALI/ETL Certified | No |
| Colors Available | Red, Blue |
Requirements

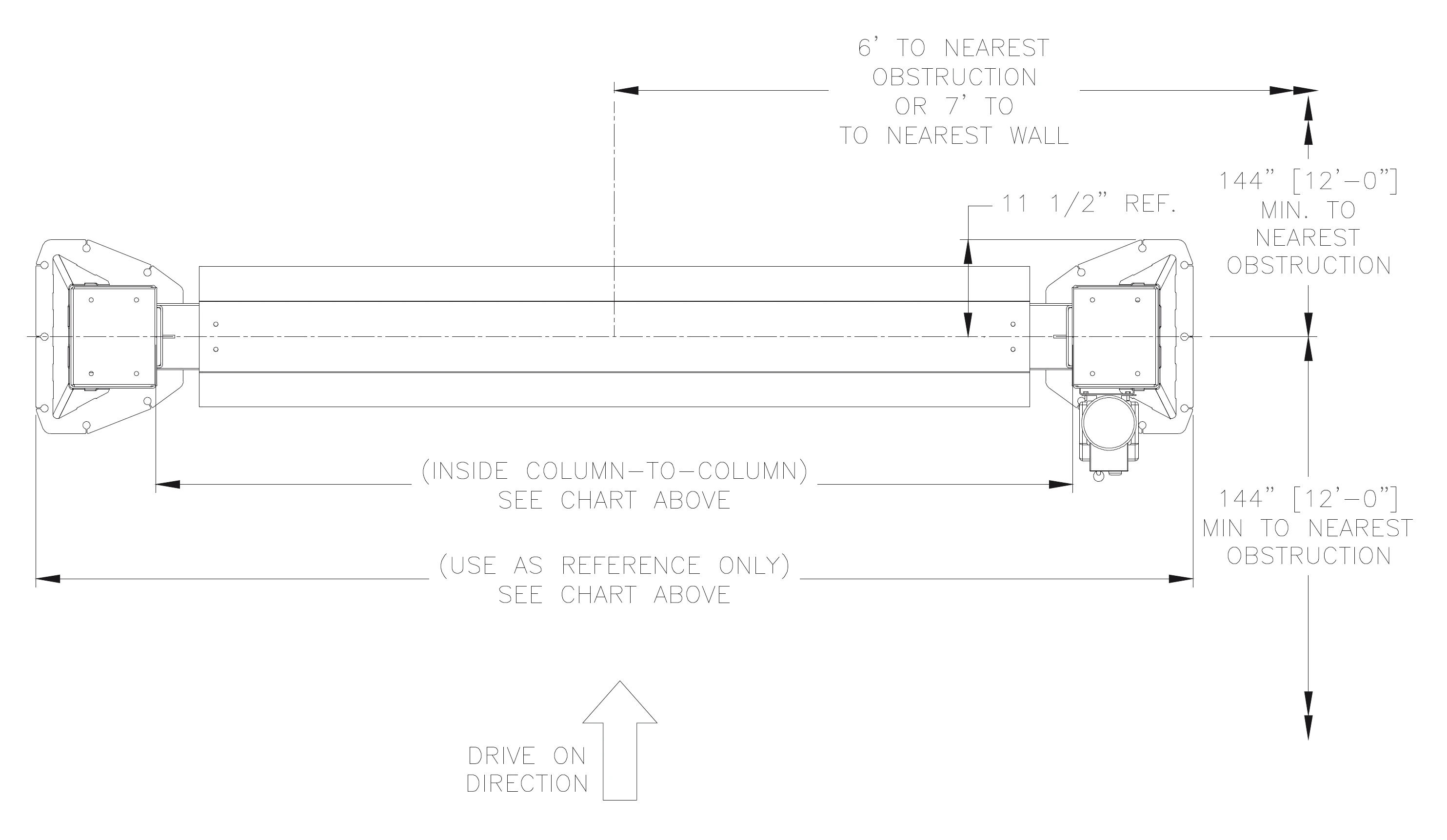

Service Bay Layout
--------------------------------------------------------------------------------------------------------------------------------
