Product Description

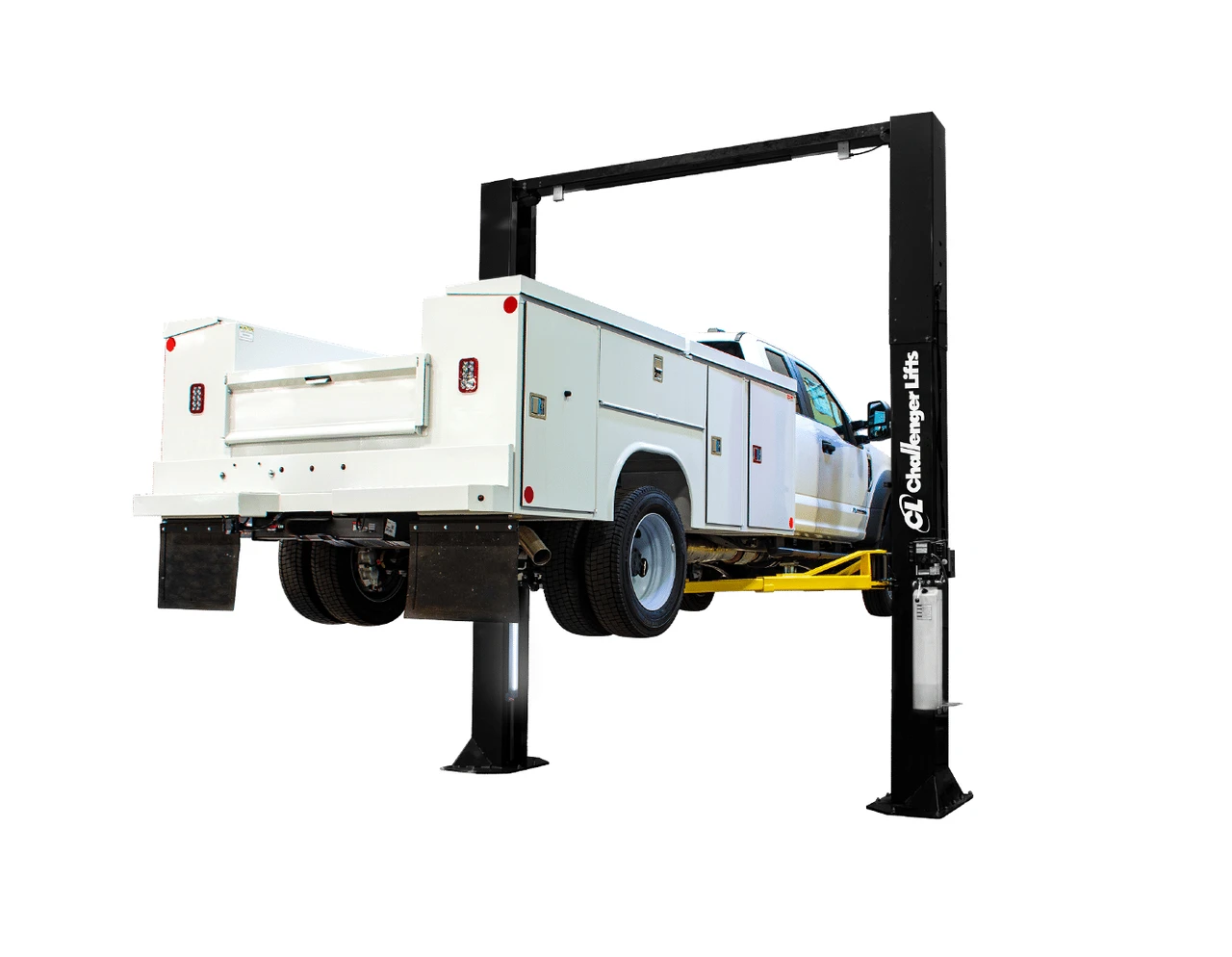

Challenger Lifts CL20 Series 20,000lb. Heavy Duty 2-Post Adjustable Lift
Introducing Challenger's latest heavy-duty lifting solution, specifically engineered for vehicles weighing up to 20,000 lbs. Wider and taller than its predecessors, the CL20 provides a robust and durable option for any fleet maintenance needs. The 2-Stage arms ensure stability during lifting, while the adjustable width makes it suitable for various vehicle sizes. The optional 2′ column extensions allow your shop to handle even taller vehicles.
The CL20 is essential for any fleet maintenance operation. With adjustable columns and superior strength, this lift is your ultimate lifting solution for heavy-duty vehicles.
**Free shipping to Continental United States.** Delivery will be made by motor freight. Customer is responsible for unloading the lift from delivery truck. Does not include installation, though installation is available locally.
Free shipping if drop shipped from the factory (subject to factory lead time). In-stock lifts at Melrose may be picked up at our warehouse, with local installation/delivery available.
Manufacturer's warranty, 1 year labor, 2 year functional parts, and 5 year structural parts.
Features
- 20,000 lbs. capacity
- 2-Stage Front & Rear arms
- Adjustable width from 12′ 10.75″ to 13′ 10.75″
- Adjustable columns allow for easy installation
- Optional 2′ Column Extensions available
- ALI Certified
Specifications
| Model Number | CL20-0 | CL20-2 |
|---|---|---|
| Description | 20K Standard | 20K Extended Height |
| Lifting Capacity | 20,000 lbs. | 20,000 lbs. |
| Lift Configuration | Symmetric | Symmetric |
| Arm Configuration | 2-Stage Front/Rear | 2-Stage Front/Rear |
| Maximum Load Per Arm | 5,000 lbs. | 5,000 lbs. |
| Rise Height (Maximum with Stack Adapters) | Min. 76.6” Max. 84.6” |
Min. 76.6” Max. 84.6” |
| Overall Height Options | 162”, 168”, 174” | 186”, 192”, 198” |
| Overall Width Options | 166.75”, 160.75”, 154.75” | 166.75”, 160.75”, 154.75” |
| Drive-Thru Clearance | 104.25”, 110.25”, 116.25” | 104.25”, 110.25”, 116.25” |
| Floor to Overhead Switch | 155”, 161”, 167” | 179”, 185”, 191” |
| Arm Reach | Min. 38.5” Max. 62” |
Min. 38.5” Max. 62” |
| Screw Pad Height | Min. 6.2” Max. 7.6” |
Min. 6.2” Max. 7.6” |
| Between Columns | 120”, 126”, 132” | 120”, 126”, 132” |
| Motor/Voltage | 3HP, 1Ph, 60Hz, 208/230v | 3HP, 1Ph, 60Hz, 208/230v |
| Air Supply Required | 90-120 psi | 90-120 psi |
| Rise Time | 62s | 62s |
| Min. Ceiling Height Required | 13’8”, 14’2”, 14’8” | 15’8”, 16’2”, 16’8” |
| Available Colors | Textured Black, Textured Red, Textured Blue | Textured Black, Textured Red, Textured Blue |
Requirements
Service Bay Layout
--------------------------------------------------------------------------------------------------------------------------------
