Product Description

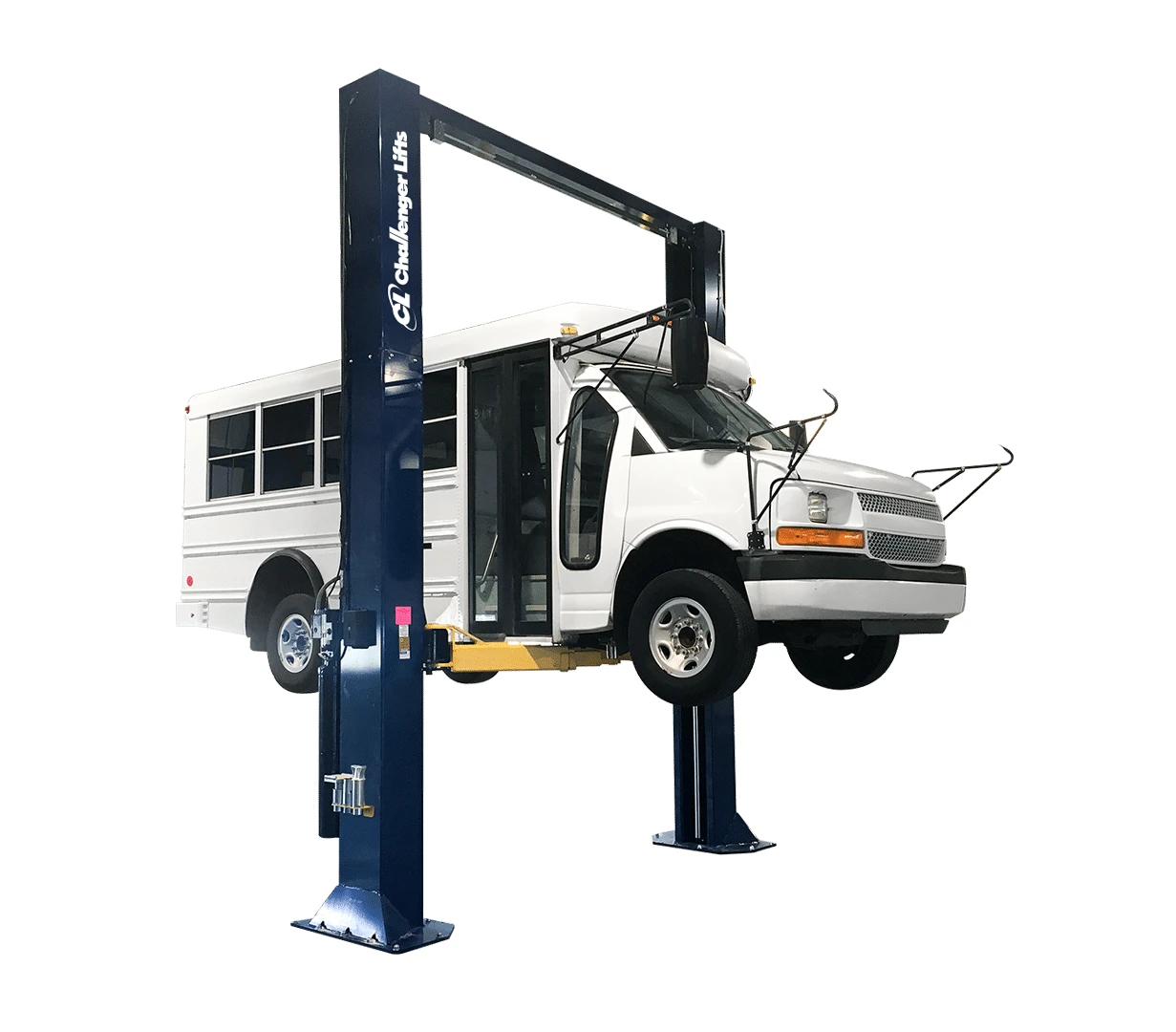

Challenger Lifts CL16 Series 16,000lb. Heavy Duty 2-Post Adjustable Lift
The Challenger CL16 is a 16,000 lb. capacity heavy-duty two-post lift designed to service a wide range of vehicles, including many passenger cars, trucks, SUVs, electric vehicles, and commercial fleet vehicles. It uses 3-stage arms and low-profile pickup pads to accommodate different vehicle sizes and lifting points, and it is available with multiple height and width configurations to suit different shop layouts. For more info on all of these models in the CL16 Series, please refer to the table below under "SPECIFICATIONS".
Each CL16 includes Challenger’s Stack Adapter Kit (P/N 10315). The lift is intended for heavy-duty and fleet service applications and is ALI® Certified for compliance with applicable industry safety and performance standards.
**Free shipping to Continental United States.** Delivery will be made by motor freight. Customer is responsible for unloading the lift from delivery truck. Does not include installation, though installation is available locally.
Free shipping if drop shipped from the factory (subject to factory lead time). In-stock lifts at Melrose may be picked up at our warehouse, with local installation/delivery available.
Manufacturer's warranty, 1 year labor, 2 year functional parts, and 5 year structural parts.
Features
- Engineered to be wider, taller, and stronger. Ready to tackle the heaviest vehicles in any fleet.
- Single-point air actuated lock release allows the technician to disengage both columns simultaneously.
- Oversized 5” diameter steel pulley and heavy-duty 3/8” cable reduces stress on equalization system and increases cable life.
- 60” lifting carriage design increases lift life.
- Adjustable width and symmetrical design allow easy access to the vehicle’s interior.
- Dual integrated rubber door guards to prevent door damage.
- Manufacturer's warranty, 1 year parts.
- ALI Certified
Specifications
| Model Number | CL16-3S | CL16-2-3S |
|---|---|---|
| Description | 16K Standard | 16K Extended Height |
| Lifting Capacity | 16,000 lbs. | 16,000 lbs. |
| Lift Configuration | Symmetric | Symmetric |
| Arm Configuration | 3-Stage Front/Rear | 3-Stage Front/Rear |
| Maximum Load Per Arm | 4,000 lbs. | 4,000 lbs. |
| Rise Height (Maximum with Stack Adapters) | Min. 75.5” Max. 81.5” |
Min. 75.5” Max. 81.5” |
| Overall Height Options | 162”, 168”, 174” | 186”, 192”, 198” |
| Overall Width Options | 166.75”, 160.75”, 154.75” | 166.75”, 160.75”, 154.75” |

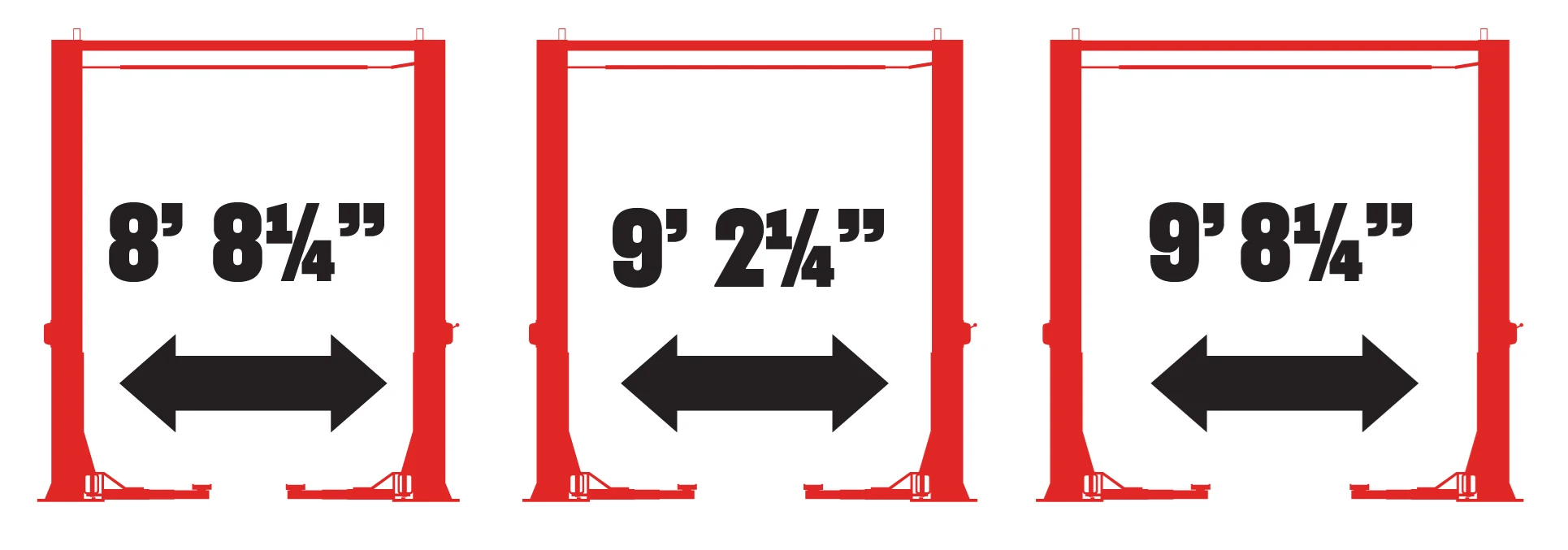

| Drive-Thru Clearance | 104.25”, 110.25”, 116.25” | 104.25”, 110.25”, 116.25” |
| Floor to Overhead Switch | 155”, 161”, 167” | 179”, 185”, 191” |
| Arm Reach | Min. 36.625” Max. 75” |
Min. 36.625” Max. 75” |
| Screw Pad Height | Min. 5” Max. 6.5” |
Min. 5” Max. 6.5” |
| Between Columns | 120”, 126”, 132” | 120”, 126”, 132” |
| Motor/Voltage | 3HP, 1Ph, 60Hz, 208/230v | 3HP, 1Ph, 60Hz, 208/230v |
| Air Supply Required | 90-120 psi | 90-120 psi |
| Rise Time | 62s | 62s |
| Min. Ceiling Height Required | 13’8”, 14’2”, 14’8” | 15’8”, 16’2”, 16’8” |
| Available Colors | Textured Blue, White, or Black | Textured Blue, White, or Black |

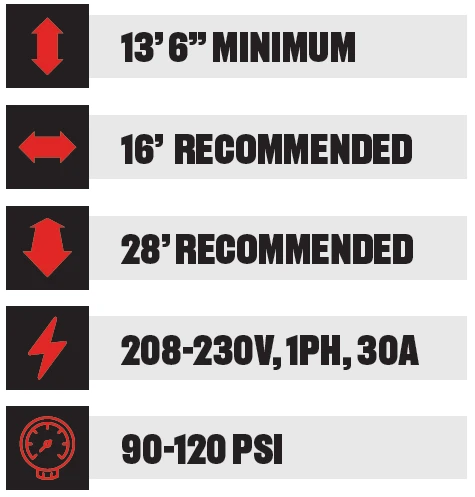

Requirements

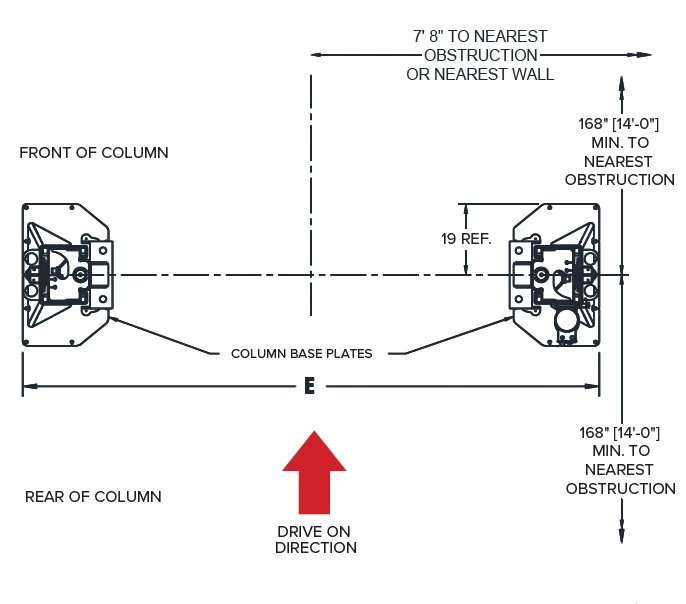

Service Bay Layout
--------------------------------------------------------------------------------------------------------------------------------
