Product Description
Hydraulic Technologies Power Team C53C 5 Ton Hydraulic 3" Single Acting Spring Return Cylinder.
FEATURES
- Aluminum bronze bearing reduces wear caused by off-center loads.
- Maximum sized springs speed piston return and increase spring life.
- Collar threads are standard on all C-Series models, simplifying fixturing applications.
- Removable rubber boots protect collar threads during transport and storage.
- Solid steel cylinder body for durability.
- Chrome plated piston rod resists wear and corrosion.
- Wide range of accessories available that mount onto the piston rod, collar, or base.
- Base mounting holes standard on 5 through 55 ton cylinders and optional on 75 and 100 ton cylinders.
- A 3/8" NPTF female half coupler is standard. Complies with ANSI / ASME B30.1 Safety Standards.

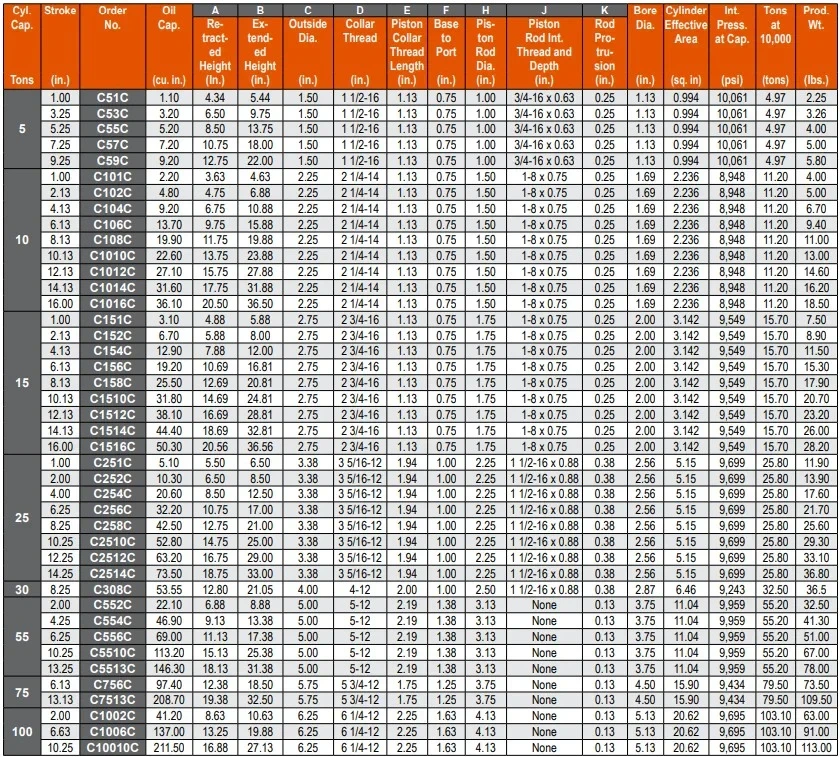

SPECIFICATIONS
| Parameter | Specification |
| Stroke | 3.25" |
| Oil Capacity | 3.20 cu. in. |

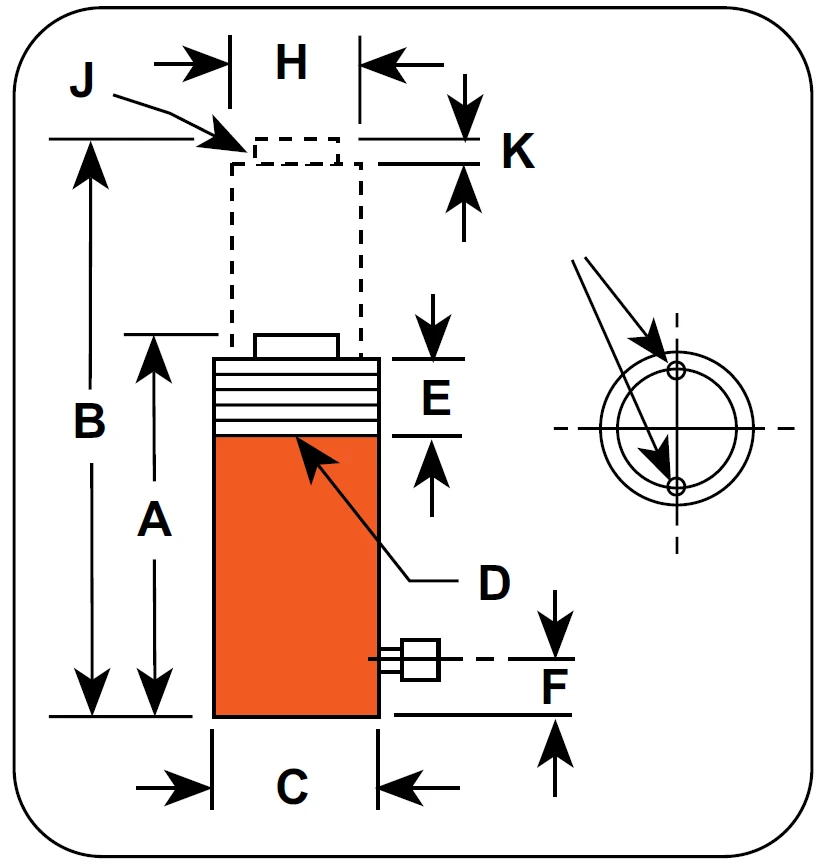

| A. Retracted Height | 6.50" |
| B. Extended Height | 9.75" |
| C. Outside Diameter | 1.50" |
| D. Collar Thread | 1 1/2-16" |
| E. Piston Collar Thread Length | 1.13" |
| F. Base to Port | 0.75" |
| H. Piston Rod Diameter | 1" |
| J. Piston Rod Int. Thread and Depth | 3/4-16" x 0.63" |
| K. Rod Protrusion | 0.25" |
| Bore Diameter | 1.13" |
| Cylinder Effective Area | .994 sq. in. |
| Int. Press at Capacity | 10,061 PSI |
| Tons at 10,000 | 4.97 Tons |
| Product Weight | 3.26 |
