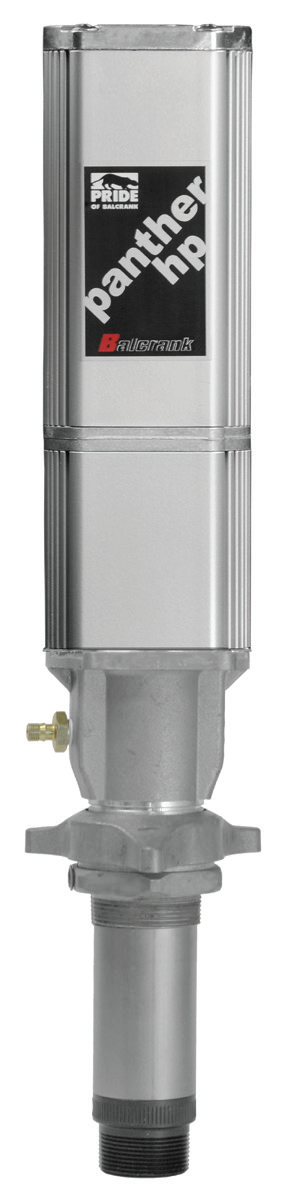

Balcrank PANTHER® HP 1130-020 3:1 Oil Piston Pump with Bung Adapter
The Panther® 1130-020 HP 3:1 ratio double acting pump is engineered for outstanding performance and reliability for dispensing lubricating oils and similar products up to SAE 90.
For use with the recommended Fluids
- Synthetic and Mineral Based Lubricants
- Hydraulic Fluid
- Transmission Fluid
PANTHER Pride Series pumps are manufactured with a mechanical air valve and piston design which is more forgiving to environments with contaminated air. The 3:1 version is a medium pressure pump for supplying higher volume than the 5:1 version but at lower operating pressures, ideal for medium pumping distances and overall flow rates of 4-5 GPM.
Applications
- Medium sized tank packages
- Medium volume maintenance shops
- Small car dealerships
- Quick lubes
Pressure relief valve kit included with this pump.
SPECIFICATIONS
| Operating Air Pressure | 10-150 PSI (0.7-10 bar) |
| Cycles Per Gallon | 34 cyc/gal (8.98 cyc/liter) |
| Air Consumption | 19.70 SCFM at 100 PSI (7 bar) and 4 gal/min (15 L/min) |
| Maximum Fluid Stall Pressure | 490 PSI (33.7 bar) @ 150 PSI (10 bar) |
| Effective Air Piston Diameter | 2.5" (63.5 mm) |
| Free Flow Pump Delivery | 8 gal/min (30 L/min) with SAE 10W30 oil at 68°F (20°C) and 100 PSI (7 bar) air pressure |
| Air Inlet | 1/4" NPT(F) |
| Fluid Inlet | 1" NPT(F); 1 1/2" NPT(M) |
| Fluid Outlet | 3/4" NPT(F) |
| Wetted Materials | Steel, Nickel Plated Steel, Stainless Steel, Aluminum, Ultrathane, Buna-N™, and Nylon |
| Service Bulletin | SB 1064 |

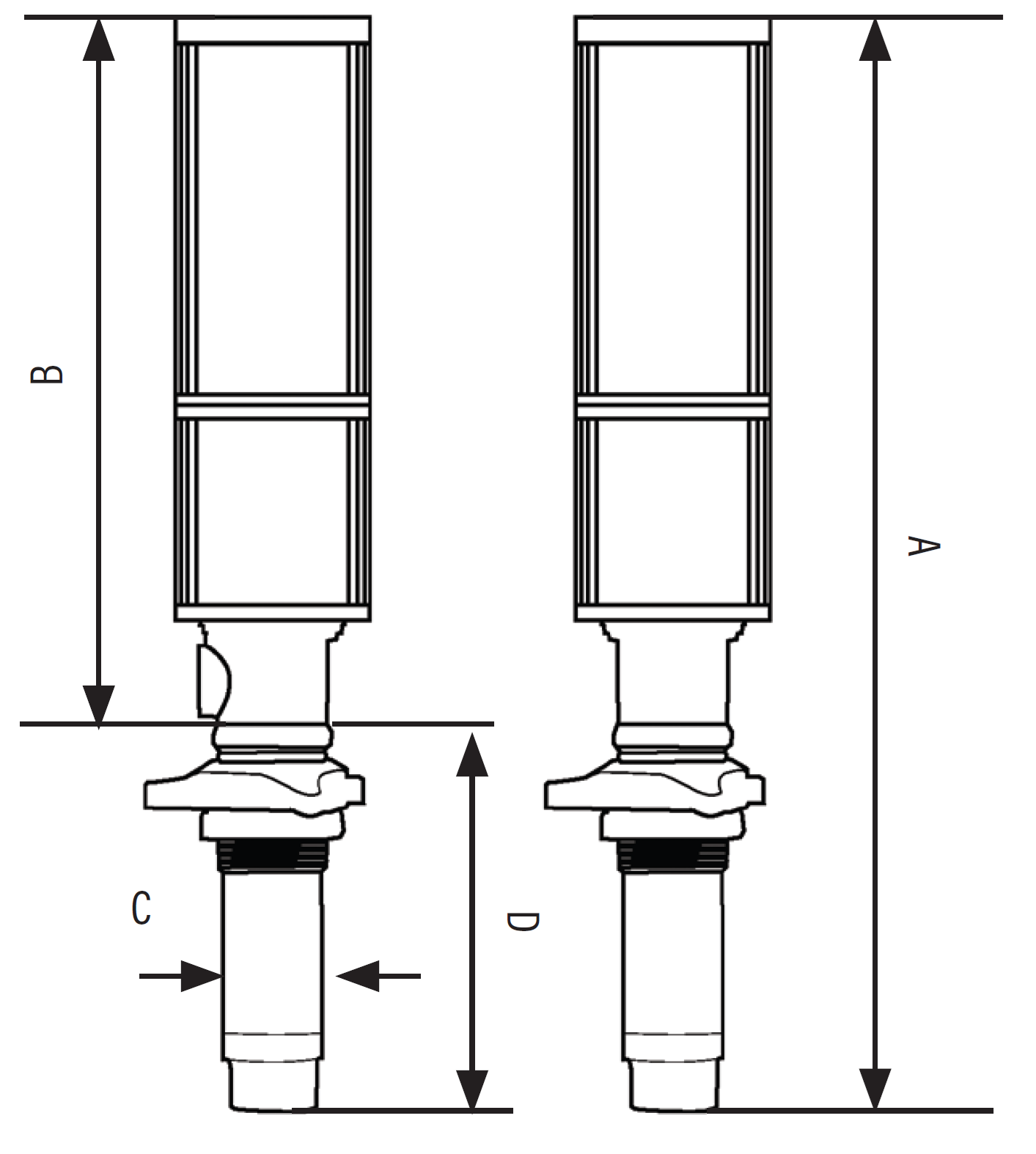

DIMENSIONS
| Model | A | B | C | D |
|---|---|---|---|---|
| 1130-015 & 1130-020 | 23.5" (523.9 mm) | 14 3/8" (285 mm) | 2 1/8" (54 mm) | 6 1/2" (158.7 mm) |
PERFORMANCE CURVES

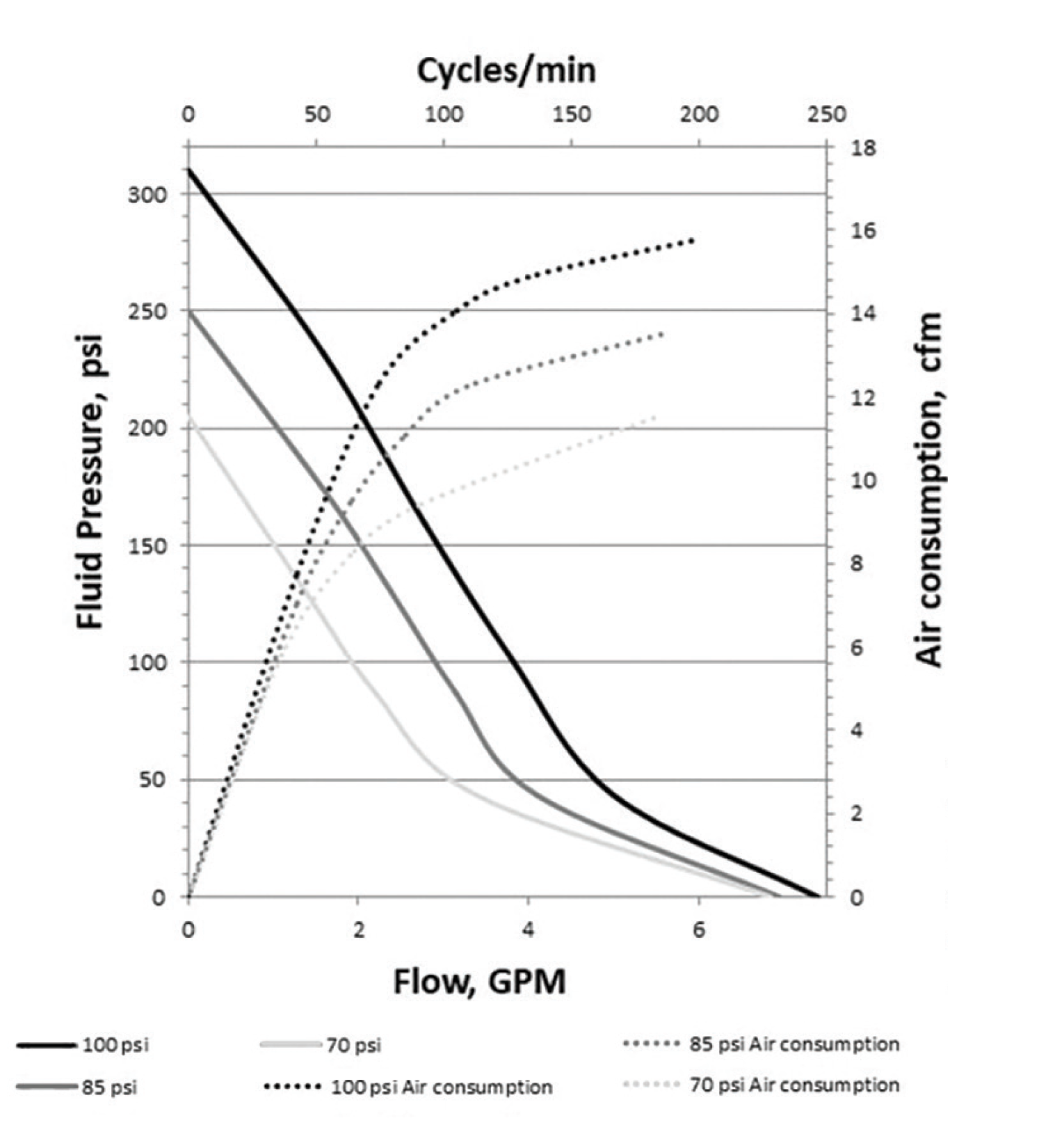

The Balcrank performance chart compares pump flow, fluid pressure, cycles per minute, and air consumption. Performance curves are shown at 70 PSI, 85 PSI, and 100 PSI operating air pressures.
- Flow: GPM
- Fluid Pressure: PSI
- Pump Speed: Cycles/min
- Air Consumption: CFM
- Fluid pressure curves shown at 70 PSI, 85 PSI, and 100 PSI
- Air consumption curves shown at 70 PSI, 85 PSI, and 100 PSI
IMPORTANT NOTES & SAFETY INFORMATION
NOTE: Thermal expansion of the fluid in a distribution system can cause an increase in system pressure that can damage lubrication system components. Use the pressure relief valve kit included with this pump.
Warning! Do not use any Pride Series products with flammable fluids.
Verify fluid compatibility with MSDS sheets.
Contact Balcrank for specific system design performance and technical data.
