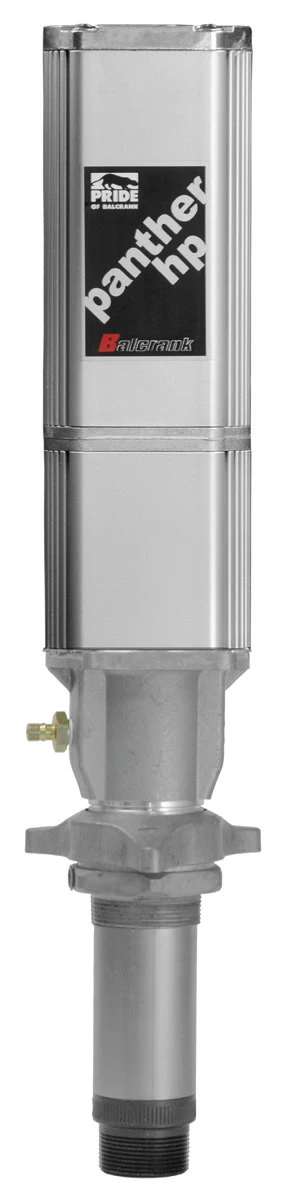

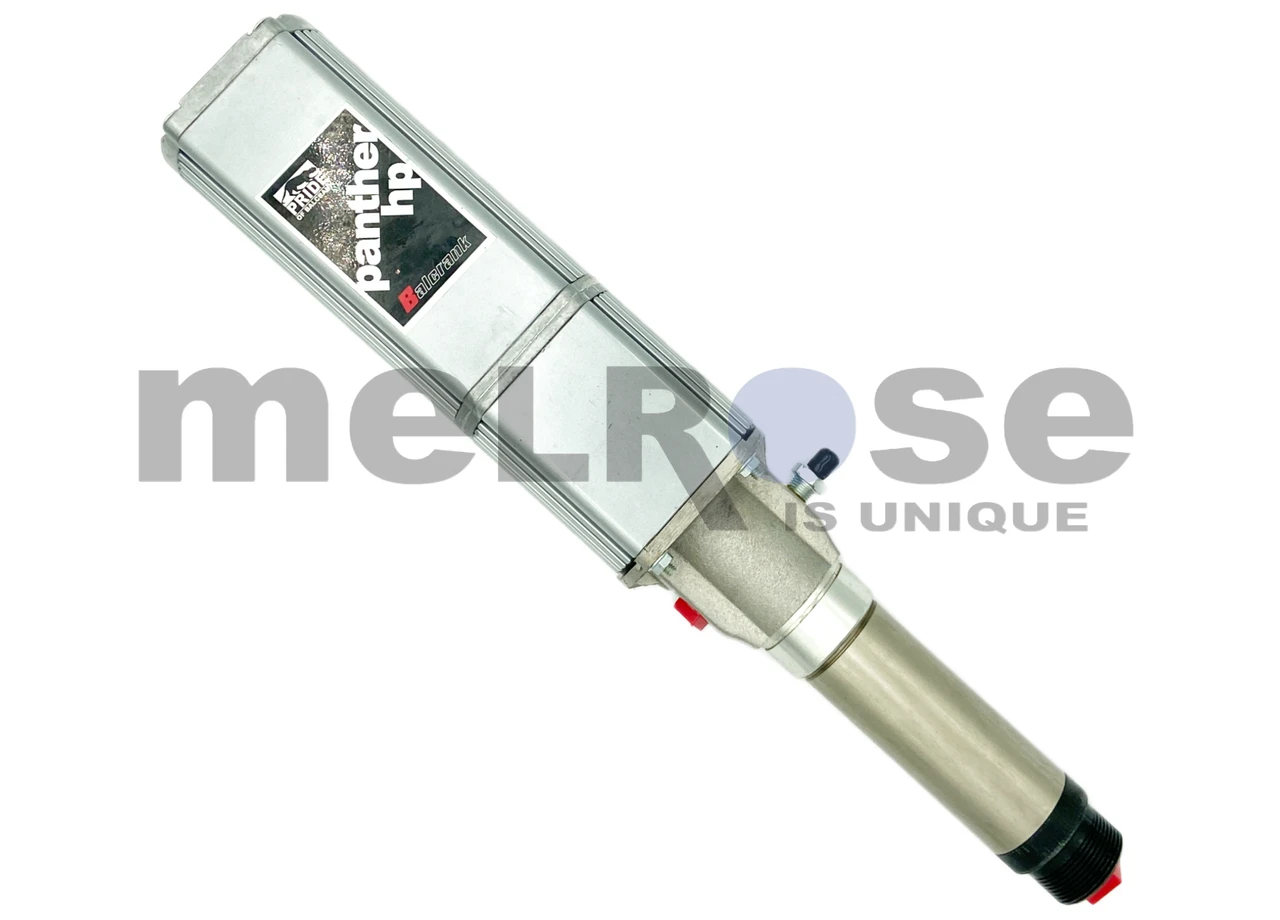

Balcrank PANTHER® HP 1130-016 5:1 Oil Piston Pump
The Balcrank 1130-016 PANTHER® HP 5:1 ratio double acting pump is engineered for outstanding performance and reliability for dispensing lubricating oils and similar products up to SAE 90.
The 1130-016 is a 5:1 bare carbon steel stub pump designed for medium pressure lubrication systems.
For Use With The Recommended Fluids
- Synthetic and Mineral Based Lubricants
- Hydraulic Fluid
- Transmission Fluid
- Gear Oil
Pump Performance
The PANTHER® HP 5:1 is a medium pressure pump designed to supply higher pressures and provide longer pumping distances than the 3:1 version. The 5:1 design operates at a lower volume and is ideal for longer pumping distances with overall flow rates of approximately 4 GPM.
Applications
- Medium sized tank packages
- Medium volume maintenance shops
- Small car dealerships
- Quick lubes
Pressure relief valve kit included with this pump.
SPECIFICATIONS
| Model | 1130-016 |
| Pump Ratio | 5:1 |
| Description | Bare Carbon Steel Stub Pump |
| Operating Air Pressure | 10-150 PSI (0.7-10 bar) |
| Cycles Per Gallon | 57 cyc/gal (15.06 cyc/liter) |
| Air Consumption | 24.80 SCFM at 100 PSI (7 bar) and 4 gal/min (15 L/min) |
| Maximum Fluid Stall Pressure | 760 PSI (52 bar) @ 150 PSI (10 bar) |
| Effective Air Piston Diameter | 2.5" (63.5 mm) |
| Free Flow Pump Delivery | 6 gal/min (30 L/min) with SAE 10W30 oil at 68°F (20°C) and 100 PSI (7 bar) air pressure |
| Air Inlet | 1/4" NPT(F) |
| Fluid Inlet | 1" NPT(F); 1 1/2" NPT(M) |
| Fluid Outlet | 1/2" NPT(F) |
| Wetted Materials | Steel, Nickel Plated Steel, Stainless Steel, Aluminum, Ultrathane, Buna-N™, and Nylon |
| Service Bulletin | SB 1064 |

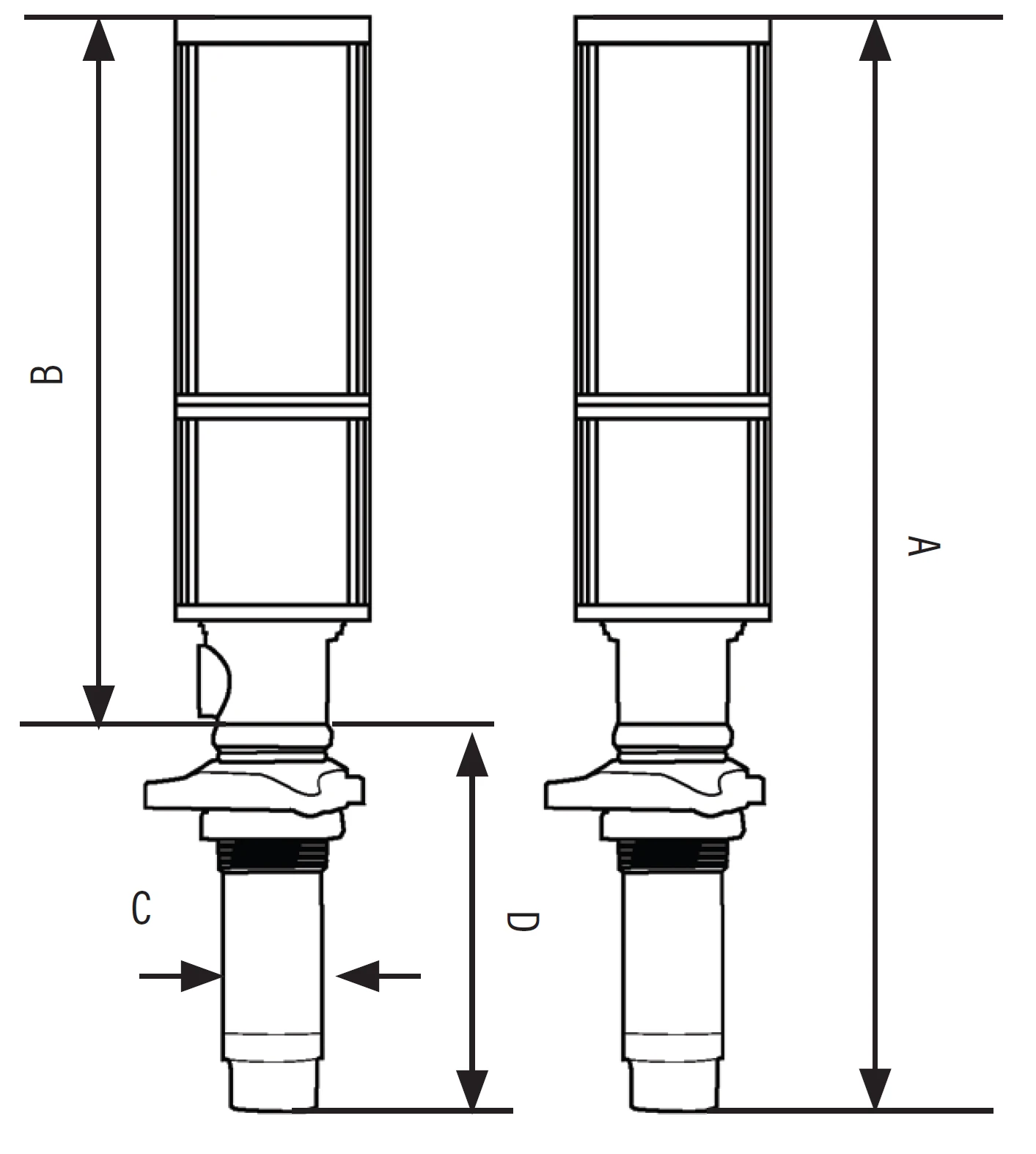

DIMENSIONS
| Dimension | Measurement |
|---|---|
| A | 23.5" (523.9 mm) |
| B | 14 3/8" (285 mm) |
| C | 2 4/5" (71 mm) |
| D | 6 1/2" (158.7 mm) |
PUMP CURVE PERFORMANCE

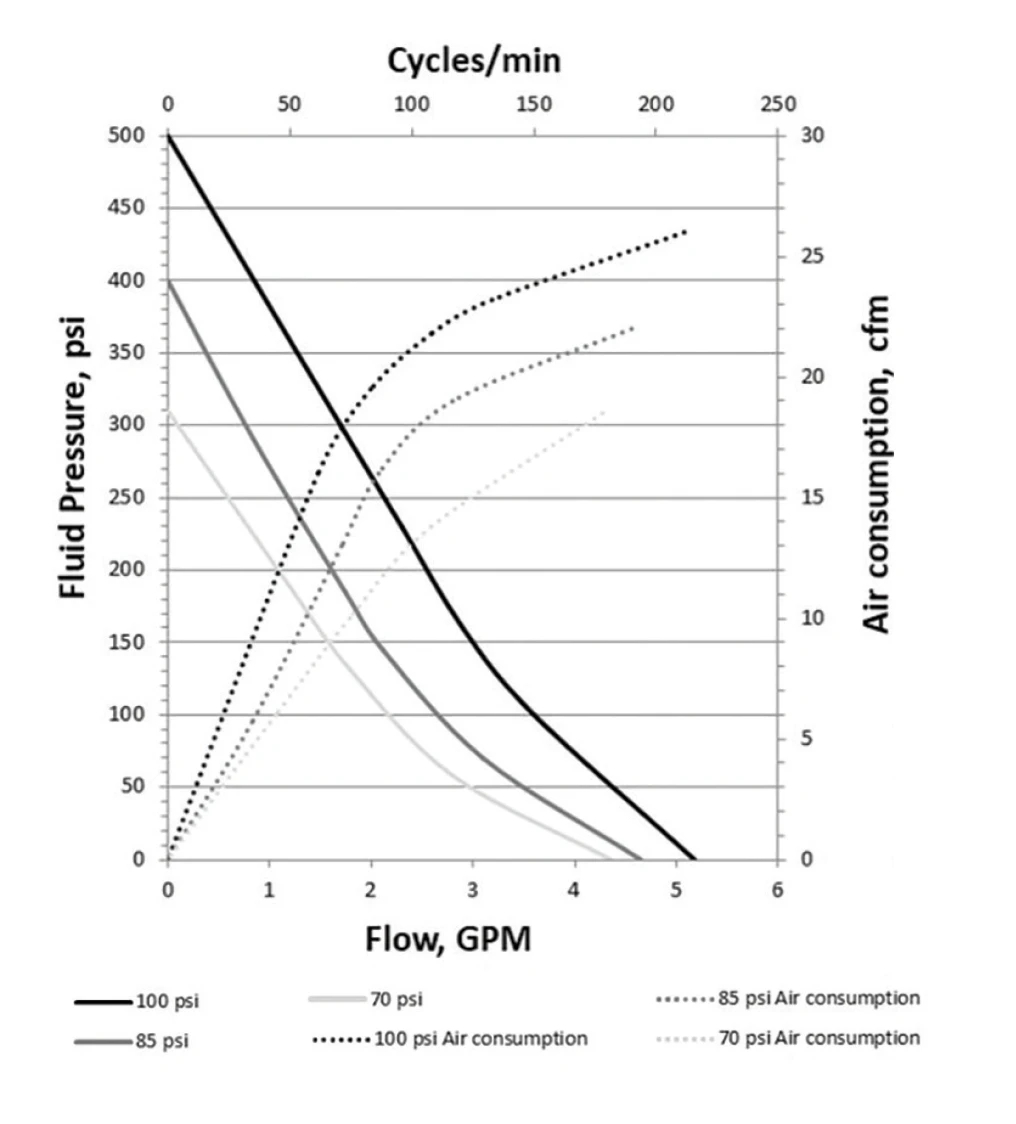

The Balcrank PANTHER® HP 5:1 performance curve illustrates the relationship between pump flow, fluid pressure, cycles per minute, and air consumption at various operating air pressures.
- Flow: GPM
- Fluid Pressure: PSI
- Pump Speed: Cycles/min
- Air Consumption: CFM
- Fluid pressure curves shown at 70 PSI, 85 PSI, and 100 PSI operating air pressure
- Air consumption curves shown at 70 PSI, 85 PSI, and 100 PSI operating air pressure
At 100 PSI (7 bar) air pressure and a flow rate of 4 GPM (15 L/min), air consumption is approximately 24.80 SCFM.
Free flow pump delivery with SAE 10W30 oil at 68°F (20°C) and 100 PSI (7 bar) air pressure is rated at 6 GPM.
IMPORTANT NOTES & SAFETY INFORMATION
NOTE: Thermal expansion of the fluid in a distribution system can cause an increase in system pressure that can damage lubrication system components. Use the pressure relief valve kit included with this pump.
Warning! Do not use any Pride Series products with flammable fluids.
Verify fluid compatibility with MSDS sheets.
Contact Balcrank for specific system design performance and technical data.
