CL9
Repair parts for the Challenger 9,000lb, two-post, surface mounted CL9 lift.
If you do not see a link to the part you need below, please contact us for further assistance. Please note this lift is an older, out of production model from Challenger and some parts not indicated as in stock or as special order may be obsolete with no replacement available.
PLEASE CLICK ON THE DIAGRAMS BELOW FOR THEIR FULL SIZE VERSIONS
| Diagram Item # | Part Description | Part # |
|---|---|---|
| 1a. | Power Column Weld | A1010-P |
| 1b. | Idler Column Weld | A1010-I |
| 2a. | Column Extension Weld - CL9 | A1055-0 |
| 2b. | Column Extension Weld - CL9-1 | A1055-1 |
| 2c. | Column Extension Weld - CL9-2 | A1055-2 |
| 3a. | Overhead Channel (Mid Section) | A1060 |
| 3b. | Overhead Channel (End Section) | A1061 |
| 4 | Shutoff Bar | 36074 |
| 5 | Pad | 31129 |
| 6 | Overhead Limit Switch | 12045 |
| 7 | 3/8 Dia x 1-7/8 Long Clevis Pin (Shutoff Bar) | A1064 |
| 8 | Hairpin Cotter Pin | 40124 |
| 9 | 3/8" Flat Washer | 31036 |
| 10 | 3/8-16NC x 3/4" Long Hex Flange Head Cap Screw | A1153 |
| 11 | 3/8-16NC Hex Flange Nut | A1154 |
| 12 | 3/8-16 x 3" Long NC Hex Flange Head Cap Screw | A2159 |
| Diagram Item # | Part Description | Part # |
|---|---|---|
| 20a. | Lock Release Cable Assembly - CL9 | A1135-0 |
| 20b. | Lock Release Cable Assembly - CL9-1 | A1135-1 |
| 20c. | Lock Release Cable Assembly - CL9-2 | A1135-2 |
| 21 | Lock Pawl | B1140 |
| 22 | Lock Cover | A1133 |
| 23 | Lock Pin 5/8 x 1-1/2" Long Shoulder Bolt | 30020 |
| 24 | Lock Pin Retainer (1/2-13NC Hex Lock Nut) | 37013 |
| 25 | Clevis Pin Kit | 37119 |
| 26 | Lock Spring (3/8" O.D.) | A1131 |
| 27 | Cable Spring (1/2" O.D.) - Idler Side ONLY | A1132 |
| 28 | Lock Release Clevis Assembly - Power Side ONLY | A1141 |
| 29 | Ball Handle - Power Side ONLY | 36096 |
| Diagram Item # | Part Description | Part # |
|---|---|---|
| 35a. | Power Unit, Single Phase, 60Hz, 208-230V | A1201-15 |
| 35b. | Power Unit, Three Phase, 60Hz, 208-230/460V | A1203-15 |
| 36 | Hyd. Elbow, 9/16 O-Ring Male to 6# Male Flare | 16167 |
| 37 | Hyd. Hose Assembly, Power Unit (22" Long) | A1123-PU |
| 38 | Bulkhead Tee, #6 Male 37 Degree Flare | A1120 |
| 39a. | Column Extension Hose, CL9-1 (24" Long) | 39101-024 |
| 39b. | Column Extension Hose, CL9-2 (48" Long) | 39101-048 |
| 40 | Hyd. Hose Assembly, Idler Column (326" Long) | A1123-I |
| 41 | Hose Clamp | A1122-12 |
| 42 | Cylinder (68" Stroke x 2" Bore) | 16138 |
| 43 | Straight Adapter, 9/16 Male O-Ring to #6 Male Flare | A1121 |
| 44 | Hyd. Hose Assembly, Power Column (81" Long) | A1123-P |
| Diagram Item # | Part Description | Part # |
|---|---|---|
| 50a. | Synchronizer Cable - CL9-0 (32'-8") CABLE PACK #A1003-0 | A1115-0 |
| 50b. | Synchronizer Cable - CL9-1 (34'-8") CABLE PACK #A1003-1 | A1115-1 |
| 50c. | Synchronizer Cable - CL9-2 (36'-8") CABLE PACK #A1003-2 | A1115-2 |
| 51 | 1/2-20NF Hex Nut | A1116 |
| 52 | 1/2-20NF Hex Jam Nut | A1117 |
| 53 | Sheave Assembly (3-1/2" Dia. x 1/4" Inner Groove) | A1041 |
| 54 | Sheave Pin | A1062 |
| 55 | Short Sheave Spacer | A1063-S |
| 56 | Long Sheave Spacer | A1063-L |
| 57 | 1" I.D. Spacer Washer | 36013 |
| 58 | 1" Ext. Retaining Ring | 36014 |
| 59 | CL9 Lower Cable Trap | A1158 |
| Diagram Item # | Part Description | Part # |
|---|---|---|
| 70 | Carriage Weld | A1025 |
| 71 | Slide Block | A1040 |
| 72 | Arm Pin Weld | B1078 |

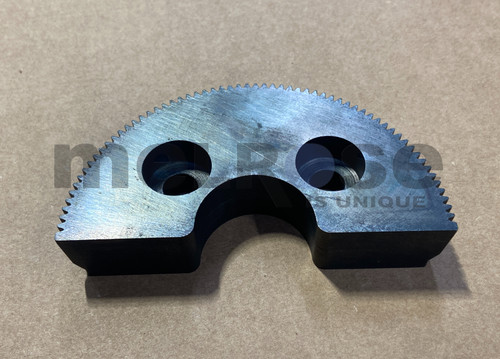

| 73 | Inner Gear | A1070 |
| 74 | 3/8-16NC x 1" Long Hex Flange Lock Head Cap Screw, Grade 5 | 12568 |
| 75 | Pull Ring | A1075 |
| 76 | Shaft | A1073C |
| 77 | Compression Spring | 31109 |
| 78 | Outer Gear | A1072 |
| 79 | 1" Ext. Retaining Ring | 36014 |
| 80a. | Front Female Arm Weld (Power Side) | B2210-P |
| 80b. | Front Female Arm Weld (Idler Side) | B2210-I |
| 81 | Front Intermediate Arm Weld | B17252R |
| 82 | Front Male Arm Weld | B2218 |
| 83 | Rear Female Arm Weld | B2220 |
| 84 | Rear Intermediate Arm Weld | B2230 |
| 85 | Rear Male Arm Weld | B2235 |
| 86 | M10 Stop Screw | B17258 |
| 87 | Foot Pad Assembly | B2260 |
| 88 | Rubber Insert | B2208 |
| 89 | Foot Pad Weld | B2205 |
| 90 | 2 x 30mm Round Wire Retaining Ring | B17256 |
| 91 | Threaded Sleeve | B17254 |
| 92 | 3 x 45mm Round Wire Retaining Ring | B17257 |
| 93 | Threaded Insert | B17276-1 |
| 94 | Roll Pin, 6mm Dia. x 30mm Long | B2211 |
| 95 | 10mm Flat Washer, 1mm Thick | CS1020-01-09 |
| Arm Pack, CL10 3-Stage | B2202 | |
| Front Arm Assembly (Power Side) | B2203U-P | |
| Front Arm Assembly (Idler Side) | B2203U-I | |
| Rear Arm Assembly | B2204U | |
| Arm Restraint Shaft Assembly (#'s 75,76,77,78,79) | A1077 |
| Diagram Item # | Part Description | Part # |
|---|---|---|
| 110 | Rear Female Arm Weld | A1091 |
| 111 | Male Arm Weld (Rear), Square Foot Pad Models | A1094-R |
| 112 | Optional Male Arm Weld (Rear). Round Stack Pad Models | B1094U-R |
| 113 | Foot Pad Rubber Insert (Square Foot Pad Models) | A1104 or A1104-H |
| 114 | Foot Pad Assembly (#'s 112, 113, 114, 115) | A1100 |
| 115 | Foot Pad Retainer Ring | 39111 |
| 116a. | Front Female Arm Weld (Power) | A1086-P |
| 116b. | Front Female Arm Weld (Idler) | A1086-I |
| 117a. | Male Arm Weld (Front), Square Foot Pad Models | A1094-F |
| 117b. | Optional Male Arm Weld (Front), Round Stack Pad Models | B1094U-F |
| 118 | 3/8 Male Arm Retainer Screw | 31305 |
| 119 | 3/8 Lock Washer | 31037 |
| Rear Arm Assembly (#'s 110, 111, 118, 119) | A1090 | |
| Power Side Front Arm Assembly (#'s 116, 117, 118, 119) | A1085-P | |
| Idler Side Front Arm Assembly (#'s 116, 117, 118, 119) | A1085-I |
